Fresh-keeping 5ton Ice Maker For Seawater Ice Flake Machine

5ton ice generator

5000kgs per day Flake Ice Maker Machine For Fishery Cooling

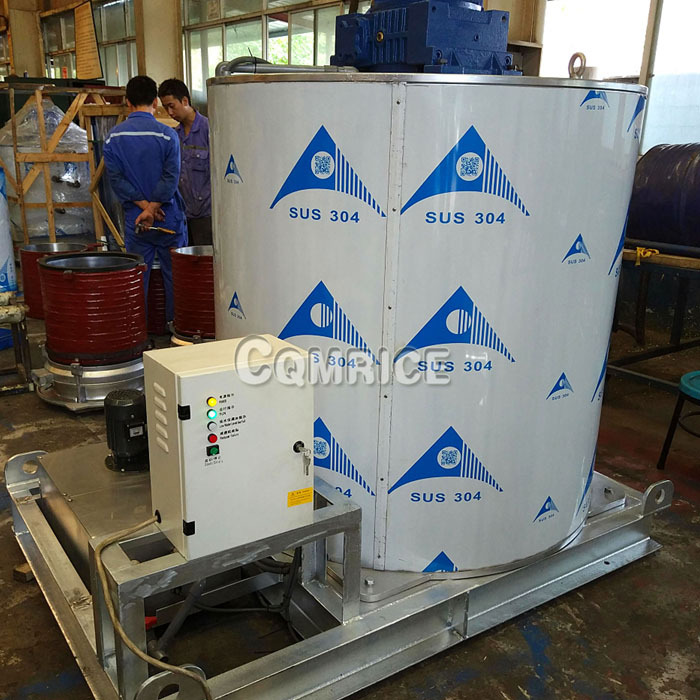

CQMRICE 5000kg Capacity Flake Ice Machine MF50WF-A :

Standard Working Condition:

Ambient Temp: 25℃, Water Inlet Temp: 16℃ Applicable Condition:

Ambient Temp: 5℃-40℃, Water Inlet Temp: 5℃-30℃ Flake Ice Thickness: 1.5-2.2mm Refrigerant: R22/R404A

Supply Power: 380V-420V, 50Hz/60Hz, 3P; 220-240V, 60Hz, 3P; 440V-480V, 60Hz, 3P;

♦Note: Due to innovation, specifications subject to change without further notice.

CQMRICE Flake Ice Machine Main Features

1. CQMRICE’s evaporator is self-produced and is with complete processes from Blanking, Welding, Annealing, Machining to Chrome-plating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.

2.Space saved: the structure is compact and simple.

3.Full automatically: the whole ice making and dropping process are controlled by PLC controller. 4.High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evaporator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.

Flake ice machine features:

Flake ice temperature:-5℃—8℃

Flake ice thickness:1.8mm—2.5mm

 Flake ice machine used efficient, energy- saving and green heat exchange, be  of  high   level  anti-corrosion, be suitable for new refrigerant and meet  energy-saving and green demands.

 Flake ice has dry smooth, not obvious edges  thus will not damage the freezer goods, so it can guarantee the freezer goods' original flavor.

Application industries:

Supermarket fresh and hotels chilled         Slaughtering industry   Food processing   Fruits, vegetables distribution and preservation   Marine fisheries and aquatic products processing    Concrete mixing works Pharmaceutical and chemical paint    Man-made ice project
