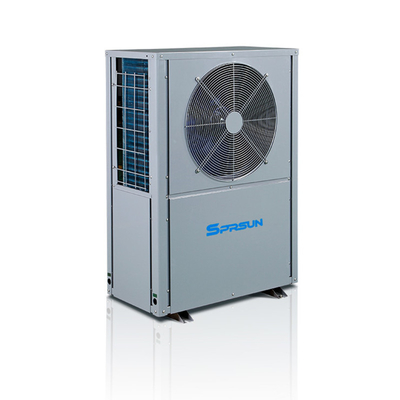

Hotel Factory Price Air To Water Chiller Heater Heat Pump Monoblock With ROHS Certificate

Factory Price Air to water cooler heater Heat Pump Monoblock with ROHS certificate

Model name :CGK/C-12(HC)

Working mode :house heating and cooling

Max outlet hot water :60C

Air ambient :-10C to 45C

Cop:3.21

Gross weight/pc  :113 kg ,

CBM /pc :0.6

1. Compressor and circulating water pump controlling

 Compressor and circulating water pump will start/stop according to return water temperature of heat pump.

2. Linkage ON/OFF function by fan coil system signal
Connect the linkage switch to fan coil system, when rooms air temperature reach preset temp, linkage switch will turn off heat pump; When rooms air tempeture drop, linkage switch will turn on heat pump

3. Automatic defrosting running

4. Forced defrosting running

User can force heat pump to defrost at any time if needed

5.Electric heater back up (If you need ,kindly let us know)
Heat pump controller can controll electric heater in water tank or on water pipes.
6. Protections

7. Timer function

 4 periods of fixed time ON/OFF setting function and fixed time of supplying hot water function

Specifications

Rated Working Condition: dry bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃; hot water temp: 55℃.

Key Components

                   Compressor :Copeland Stroll compressor

AC Contactor : Eaton brand

                          Expansion valve :Danfoss expansion valve

Installation Digragram

1.Easy installation :

Air to water heat pump is most easily installed , only need to connect with your used water pipe .

2.How to change between heating and cooling

Heat pump working mode can be changed between heating mode and cooling mode by operating wired panel

3.Heat pump also can be connected with solar collector , energy saving will up to 90% .

when the water temp cant reach the preset water temp, then the heat pump will start operating. Even in the winter, heat pump will be the mainly use in stead of the solar heater.

4.Installation components :

water tank, circulation water pump, four way valve, water flow switch , water pipes, filter , safe valve  and etc.

Our company can supply water tank, circulation water pump , three way valve, safe valve,  if you need, kindly let us know in advance.

Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN heat pump water heaters is shocking.

Under 20℃ environment temperature and 15℃ water temperature condition, sample for heating 200L water to 55℃.

As one of the Top 10 brand in China's heat pump industry, SPRSUN has been in the heat pump industry for 20 years. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps ,high temp heat pump, EVI low temp heat pump , EVI inverter heat pump , DC inverter heat pump and swimming pool heat pump , getherrmal  ground source heat pump for the HVAC market, providing home heating and cooling system . Our products are welcome all over the world, such as Germany, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.

Workshop

6 Production Lines & 1 National Standard Heat Pump Testing Lab

SPRSUN Heat Pump Projects Worldwide

Certifications

Focusing on hot water, heating and cooling, SPRSUN is built up to meet customers'special energy saving needs with advanced technology support from Germany while ISO9001 and ISO14001 have been obtained. Our heat pump products are produced based on EN14511 standard with CE, CB, SAA, ETL and ERP certificates.

A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.

A: Our main products include air source heat pumps, water/ground source heat pumps, swimming pool heat pumps, high temperature heat pumps, EVI heat pumps for cold area and so on.

A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.

A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.

A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.

Our warranty is 18 months, but actually we provide lifelong maintenance service. Within 18 months since the delivery date, if the product has any failure under normal usage, SPRSUN will provide free assembly parts. After the warranty period, we will continue to provide lifelong maintenance service, with just a small amount of charges.
